Research ArticleArticles

Fortifying the Bone-Implant Interface Part 1: An In Vitro Evaluation of 3D-Printed and TPS Porous Surfaces

Regina F. MacBarb, Derek P. Lindsey, Chelsea S. Bahney, Shane A. Woods, Mark L. Wolfe and Scott A. Yerby
International Journal of Spine Surgery January 2017, 11 (3) 15; DOI: https://doi.org/10.14444/4015
Regina F. MacBarb
SI-BONE, Inc., San Jose, CA, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Derek P. Lindsey
SI-BONE, Inc., San Jose, CA, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Chelsea S. Bahney
Department of Orthopaedic Surgery, University of California, San Francisco, CA, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Shane A. Woods
MPI Research, Mattawan, MI, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Mark L. Wolfe
MPI Research, Mattawan, MI, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Scott A. Yerby
SI-BONE, Inc., San Jose, CA, USA
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • Article
  • Figures & Data
  • Info & Metrics
  • PDF
Loading

Article Figures & Data

Figures

  • Tables
  • Fig. 1
    • Download figure
    • Open in new tab
    • Download powerpoint
    Fig. 1

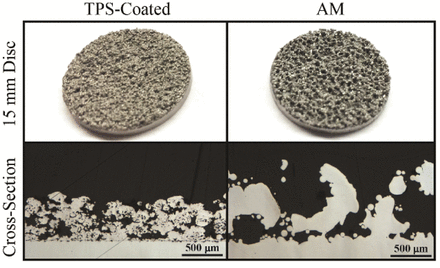

    Gross images of titanium plasma spray (TPS) coated and additive manufactured (AM) discs (top). Cross-section images taken from stereological analysis (bottom).

  • Fig. 2
    • Download figure
    • Open in new tab
    • Download powerpoint
    Fig. 2

    Representative scanning electron microscopy (SEM) images of unseeded titanium plasma spray (TPS) coated and additive manufactured (AM) discs (top left), discs after three weeks of culture with hFOB cells (bottom left), and of human cancellous bone allograft to show target surface topography (top right). Representative SEM images of nanocrystalline hydroxyapatite (HA) coating on an AM disc (bottom right).

  • Fig. 3
    • Download figure
    • Open in new tab
    • Download powerpoint
    Fig. 3

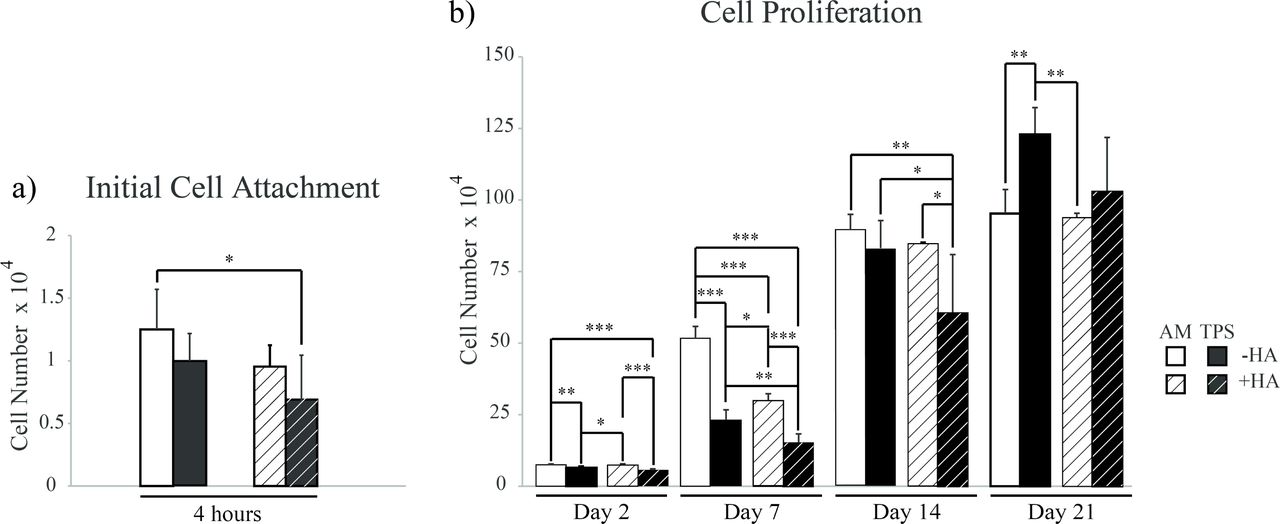

    Two-way ANOVA analysis of additive manufactured (AM) compared to titanium plasma spray (TPS) coated discs, with and without nanocrystalline hydroxyapatite (HA) coating for initial cell attachment (a) and cell proliferation (b). When warranted, a Tukey’s post hoc test was used. Analysis was conducted within each time point for each metric. * = p < 0.05, ** = p < 0.01, *** = p < 0.001, n = 5 per group, mean ± SD.

  • Fig. 4
    • Download figure
    • Open in new tab
    • Download powerpoint
    Fig. 4

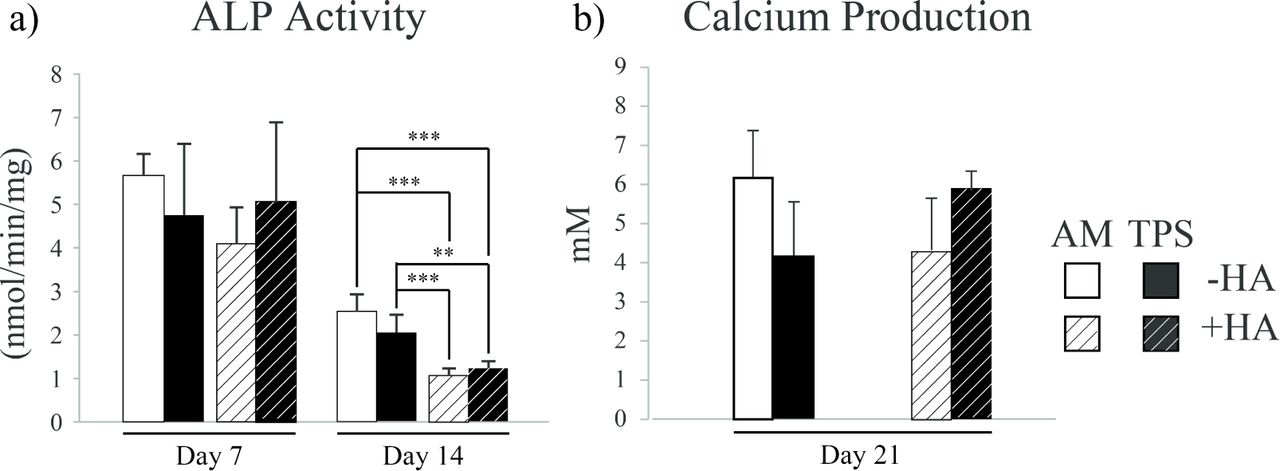

    Two-way ANOVA analysis of additive manufactured (AM) compared to titanium plasma spray (TPS) coated discs, with and without nanocrystalline hydroxyapatite (HA) coating for alkaline phosphatase (ALP) activity (a) and calcium production (b). When warranted, a Tukey’s post hoc test was used. Analysis was conducted within each time point for each metric. * = p < 0.05, ** = p < 0.01, *** = p < 0.001, n = 5 per group, mean ± SD.

Tables

  • Figures
    • View popup
    Table 1

    Surface characterization of titanium plasma spray (TPS) coated and additive manufactured (AM) discs.

    TPSAM
    Mean Porosity (%), mean ± SD58.8 ± 6.260.0 ±3.7
    Mean Pore Size (μm), mean ± SD141.7290.6
    Tissue Interface Height (μm)7431051
    Estimated Average Available Surface Area (mm2)649.391153.67
    *Estimated Surface Contact Angle θ (°), mean ± SD105.2 ± 12.470.1 ± 9.9
    • ↵* Note: Surface contact angle could not be measured on HA-coated discs due to their near perfect surface wettability.
